Tornillo de Bloqueo de Esponjosa ø 5.0 mm
descripción

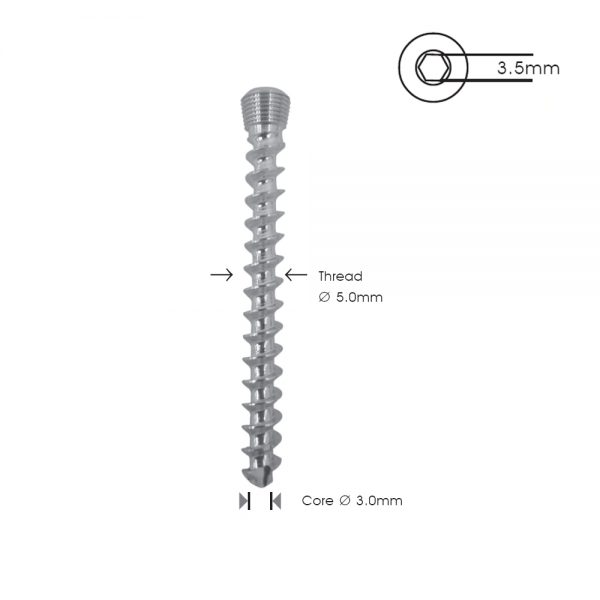

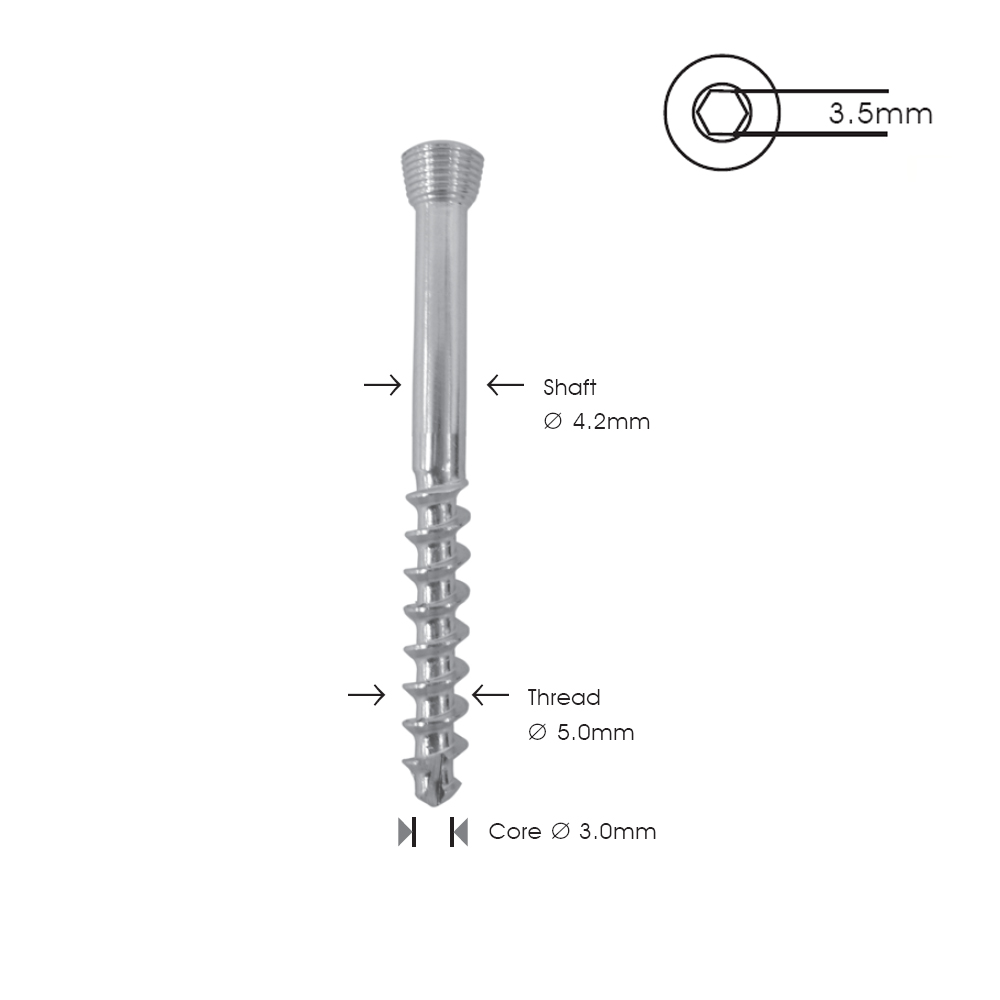

El diámetro de este tornillo es de 5.0 mm. La cabeza es cónica y roscada. La huella o hendidura es hexagonal de 3.5 mm. El diámetro interior o núcleo del tornillo es de 3.0 mm. El tornillo de bloqueo de esponjosa 5.0 mm cuenta con las siguientes presentaciones: rosca total y rosca 16 mm (longitud de 25 a 120 mm) y rosca 32 mm (longitud 40 a 120 mm).
| Longitud (mm) | Acero Inoxidable | ||
|---|---|---|---|
| Rosca Total | Rosca 16 mm | Rosca 32 mm | |
| 25 | SF-500.725 | SF-500.325 | – |
| 30 | SF-500.730 | SF-500.330 | – |
| 35 | SF-500.735 | SF-500.335 | – |
| 40 | SF-500.740 | SF-500.340 | SF-500.540 |
| 45 | SF-500.745 | SF-500.345 | SF-500.545 |
| 50 | SF-500.750 | SF-500.350 | SF-500.550 |
| 55 | SF-500.755 | SF-500.355 | SF-500.555 |
| 60 | SF-500.760 | SF-500.360 | SF-500.560 |
| 65 | SF-500.765 | SF-500.365 | SF-500.565 |
| 70 | SF-500.770 | SF-500.370 | SF-500.570 |
| 75 | SF-500.775 | SF-500.375 | SF-500.575 |
| 80 | SF-500.780 | SF-500.380 | SF-500.580 |
| 85 | SF-500.785 | SF-500.385 | SF-500.585 |
| 90 | SF-500.790 | SF-500.390 | SF-500.590 |
| 95 | SF-500.795 | SF-500.395 | SF-500.595 |
| 100 | SF-500.800 | SF-500.400 | SF-500.600 |
| 105 | SF-500.805 | SF-500.405 | SF-500.605 |
| 110 | SF-500.810 | SF-500.410 | SF-500.610 |
| 115 | SF-500.815 | SF-500.415 | SF-500.615 |
| 120 | SF-500.820 | SF-500.420 | SF-500.620 |
